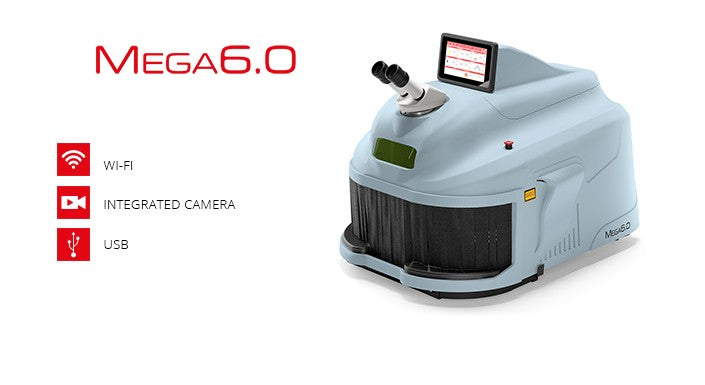

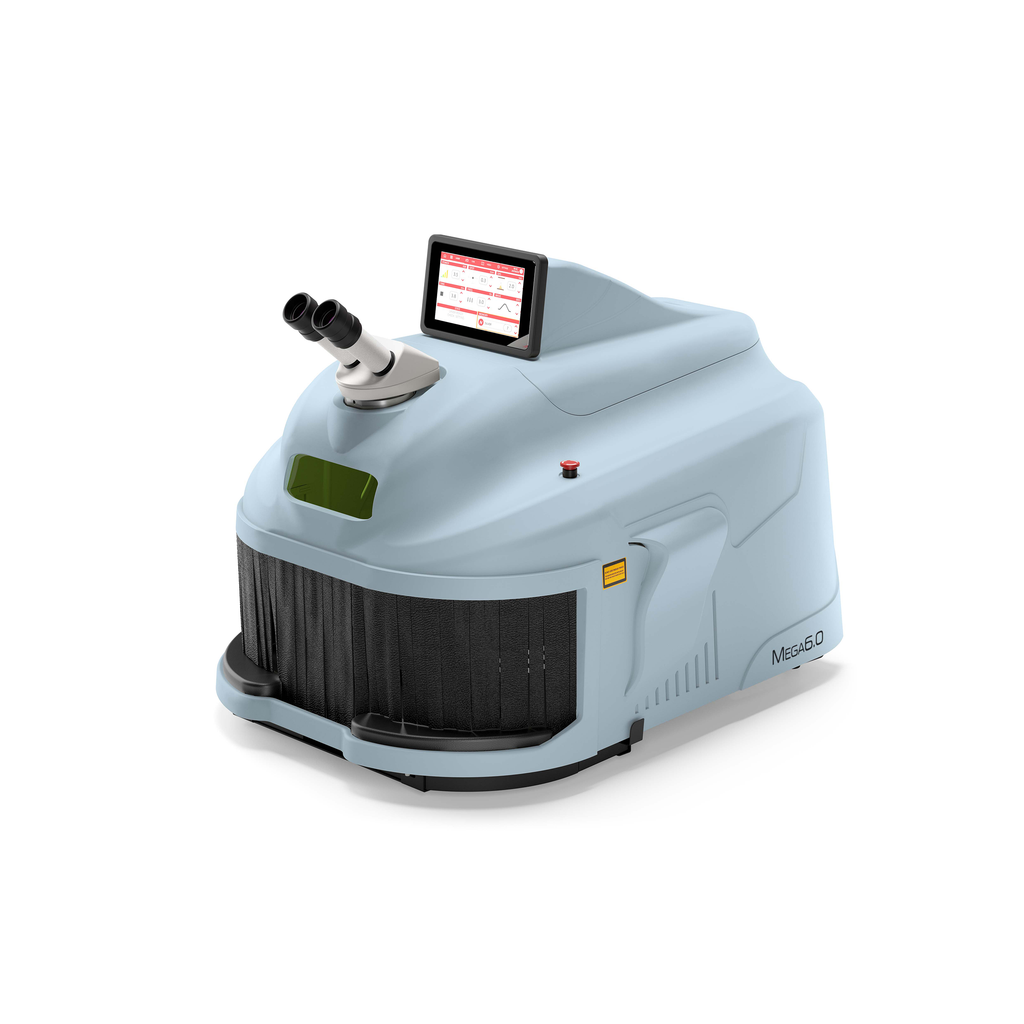

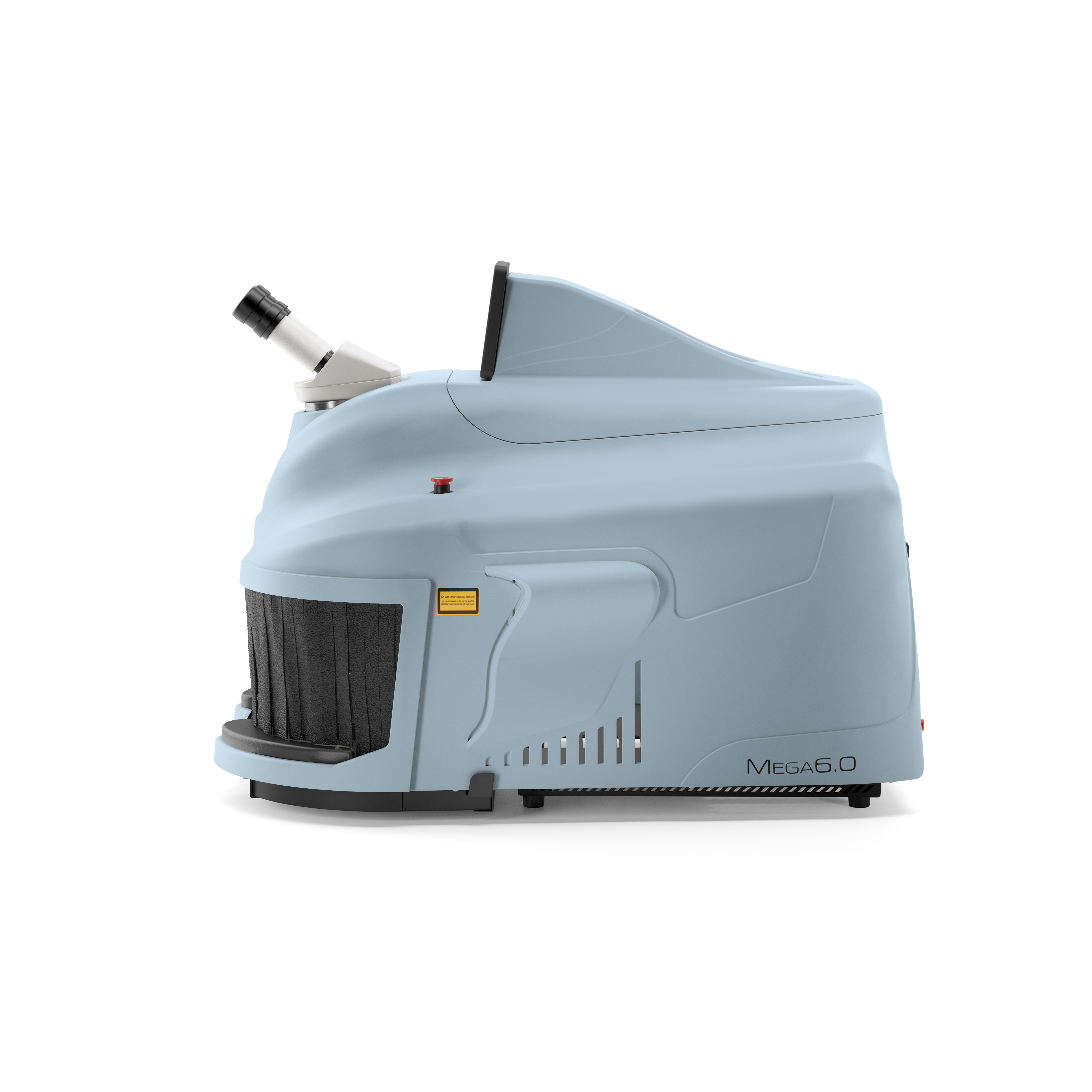

Elettrolaser Mega 6.0 — Laser Welding System

Contact us for Financing or Lease Options!

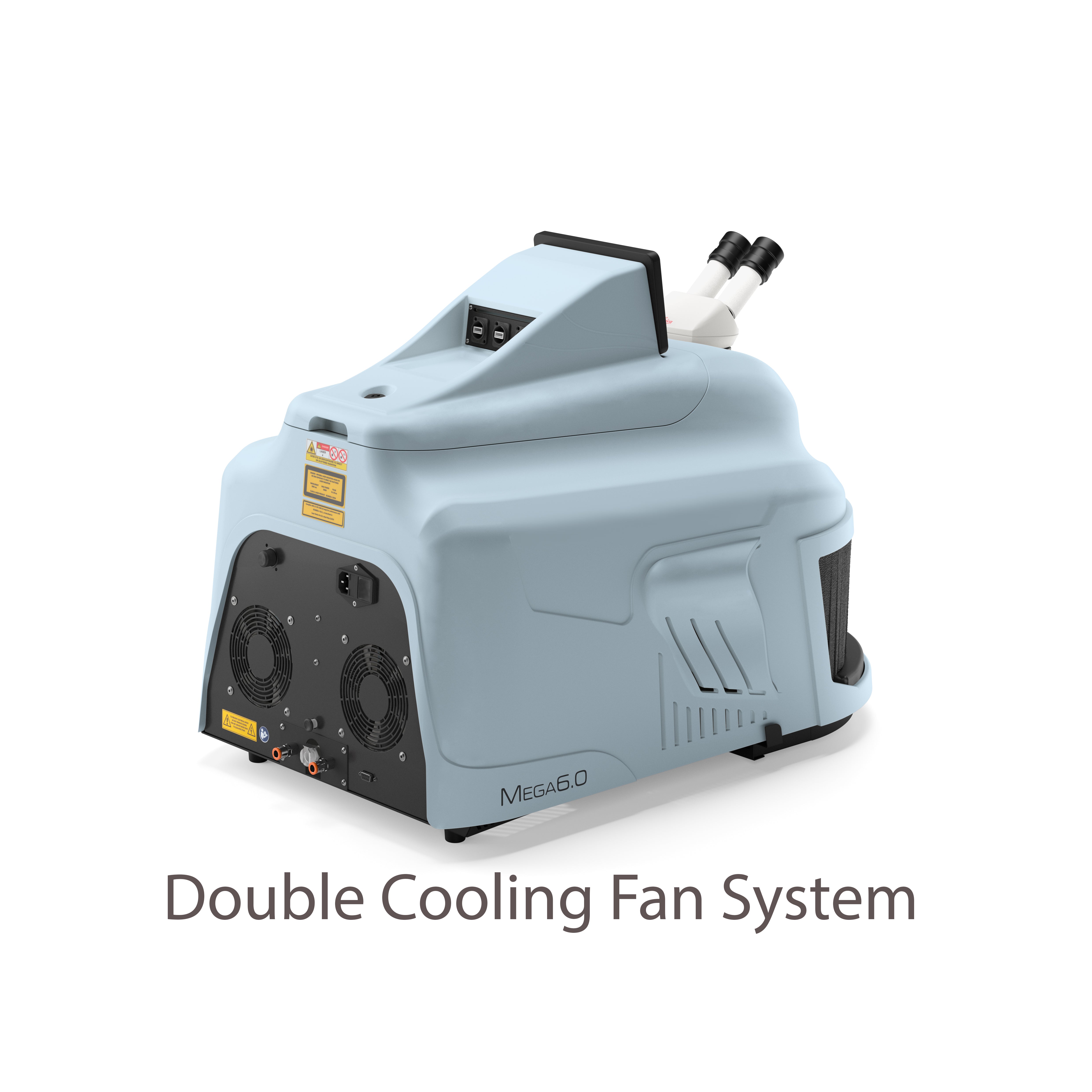

Double Cooling System
Equipped with two rear-mounted fans, the Elettrolaser double cooling system efficiently disperses the intense, localized heat generated during laser welding. By channeling heat away from critical internal components, it helps maintain consistent beam quality, spot size, and welding accuracy. Unlike single cooling systems—which often require frequent pauses to prevent overheating—the dual cooling configuration enables extended, uninterrupted welding sessions. This is especially valuable when working on larger or thicker pieces that demand sustained operation.

Exceptional Performance on Multiple Metals
The Mega 6.0 delivers outstanding results when working with gold, silver, platinum, titanium, and other precious metals. Featuring Elettrolaser’s exclusive SMOOTH SPOT technology, it offers precision laser beam shaping ideal for fine-metal applications in jewelry, dental work, and beyond. SMOOTH SPOT creates a uniform, highly consistent laser spot that precisely matches your selected size—even as small as 0.1 mm. Unlike many competing systems, which often produce larger and uneven spots, SMOOTH SPOT ensures balanced energy distribution. This leads to smoother welds, better flow of filler materials, and superior surface finishes, reducing the risk of porosity and surface imperfections.

Designed for Comfort and Efficiency

• Spacious internal work chamber equipped with an integrated joystick for precise, ergonomic operation.

• Advanced features include:

  • Argon gas inlet for welding in inert atmospheres

  • WiFi connectivity for remote access and updates

  • Built-in tutorial videos for quick operator training

  • 100 programmable memory presets

  • Large 7” color touchscreen interface

  • High-quality Leica stereo microscope for exceptional visual clarity

• Backed by a comprehensive 3-year warranty for peace of mind.

Technical Specifications – Mega 6.0

• Laser Source & Wavelength: Nd:Ce:YAG, 1064 nm

• Average Power: 100 W

• Peak Power: 11 kW

• Energy per Pulse: Up to 255 J

• Pulse Duration: 0.1 – 25 ms

• Pulse Frequency: 0.5 – 40 Hz

• Spot Diameter Range: 0.1 – 2.0 mm

• Spot Adjustment: Motorized

• Pulse Shaping Programs: 6 presets

• Memory Capacity: 100 program slots

• Internal Chamber Control: Joystick

• External Control Interface: 7” Color Touch Screen

• Power Supply: 1100 V AC, 50/60 Hz

• Argon Nozzle: Yes

Typical Applications

• Welding precious metals such as platinum, titanium, gold, silver, and palladium

• Restoration of antique jewelry

• Repair of stone settings without needing to remove gemstones

• Repair of tennis bracelet clasps

• Maintenance and repair of watches, eyewear (including nose pads, hinges, and frames), and other fine components

• Welding using filler materials with minimal post-processing

• Correction of casting defects like porosity or cracks

• Dental work, including repair of bridges, implants, prostheses, and orthodontic devices

• Mold and die repair

• Welding in areas difficult to access with a traditional flame or arc welding tools
