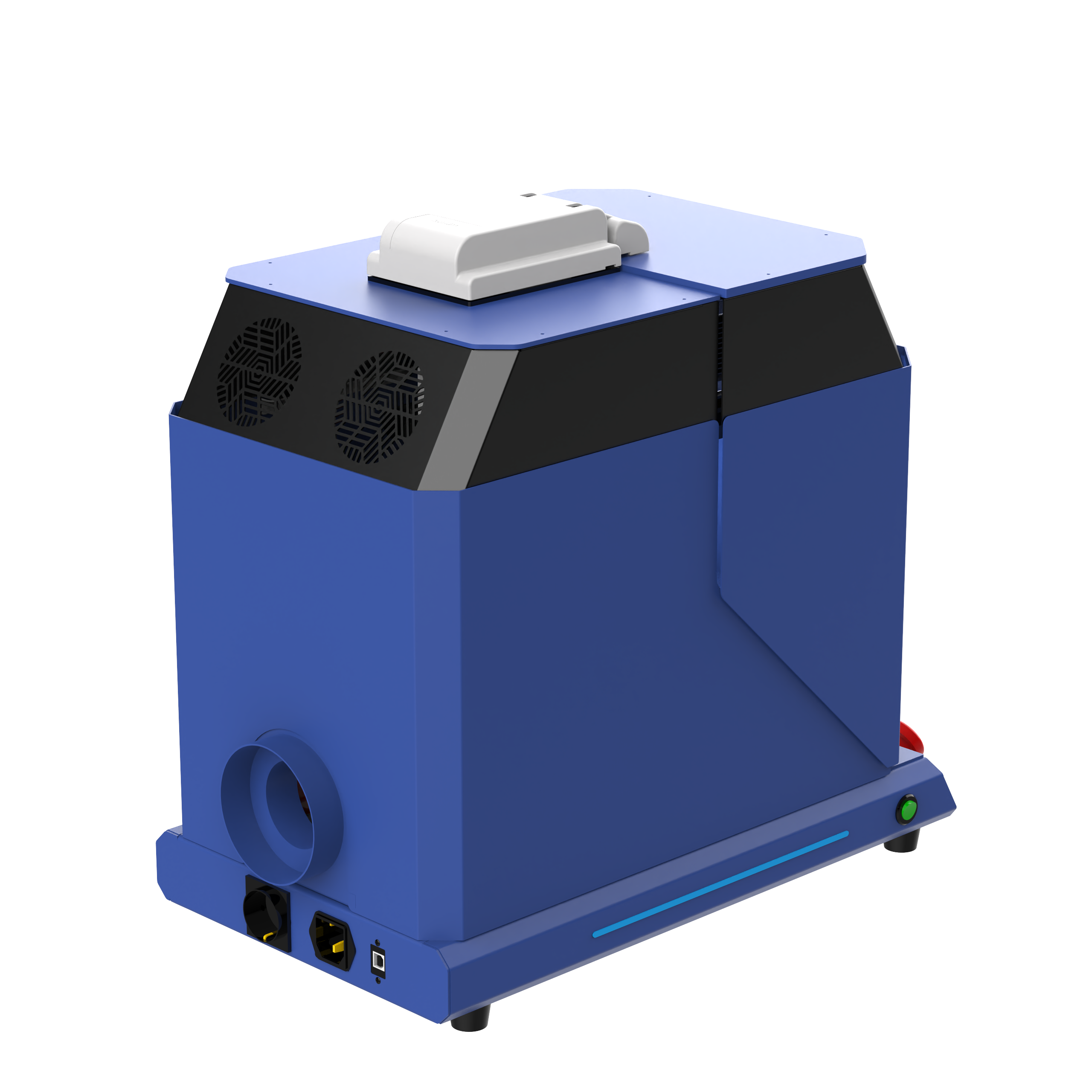

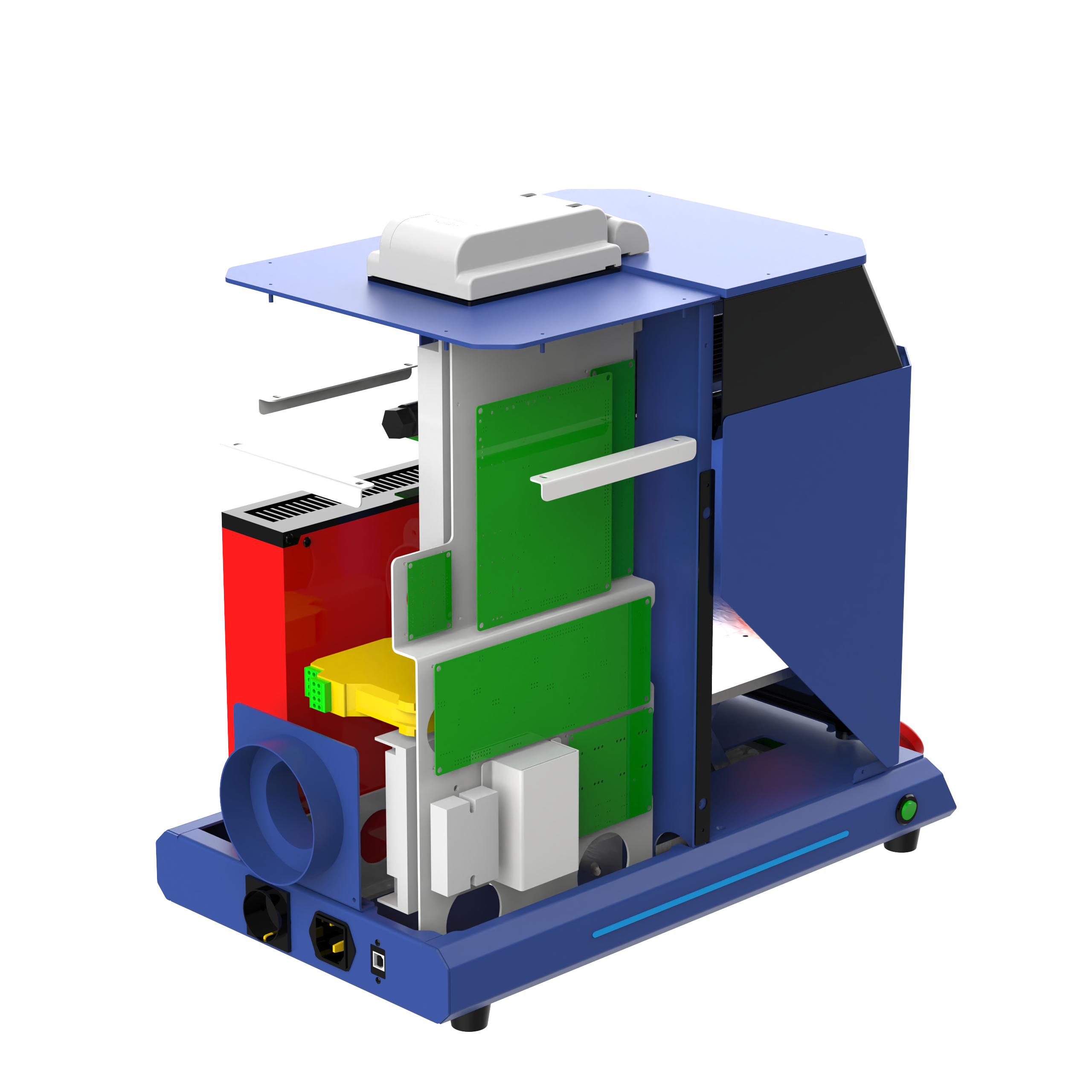

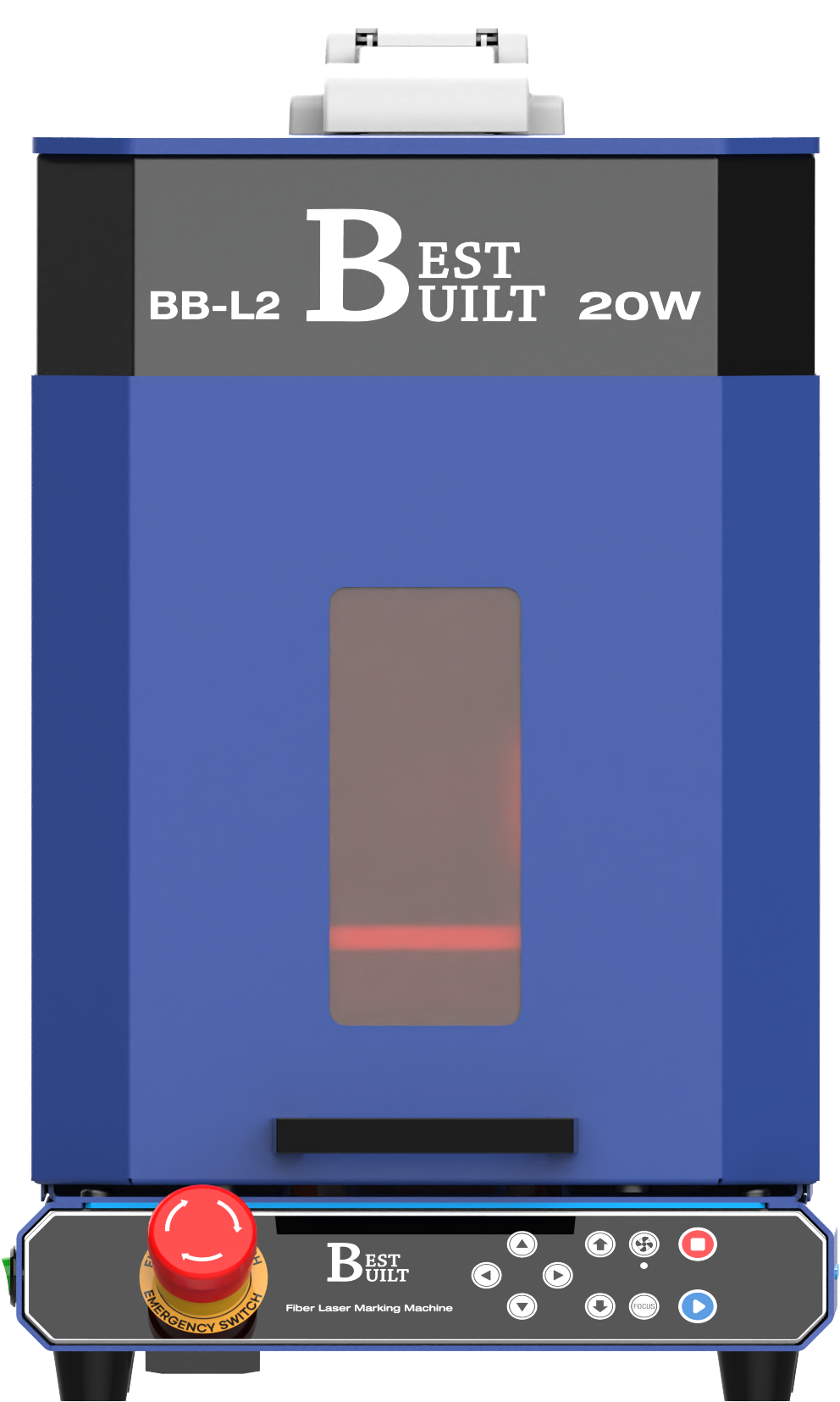

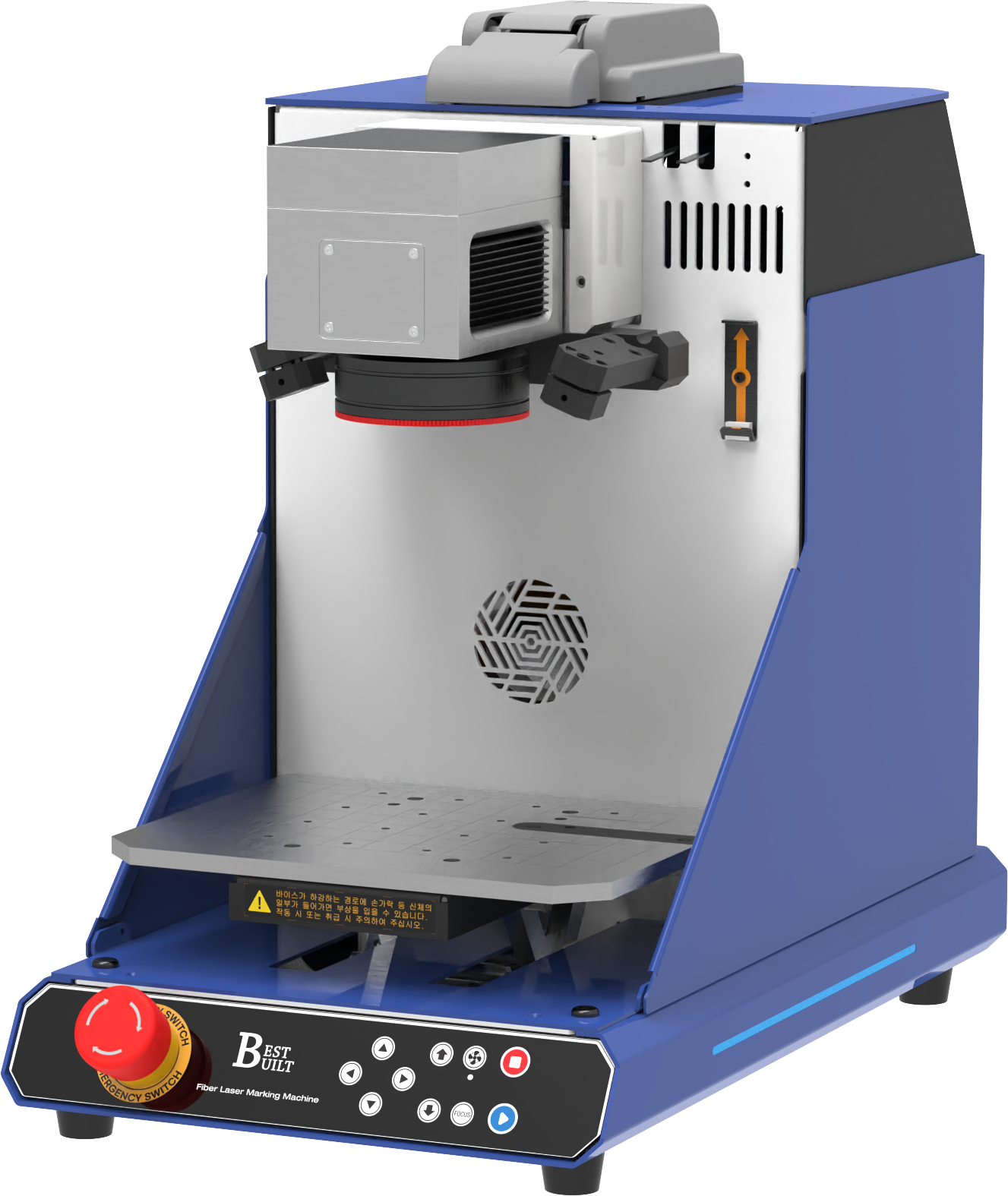

BB-L2 is a laser marking machine developed based on the L100 laser marking machine that has been used for a long time in the jewelry industry. The new model L2 can safely, conveniently, and quickly perform marking work that is more delicate and complex, and help with a variety of shapes, unlike general industrial marking.
Developed based on the demands and expectations raised by many jewelers for a variety of laser marking machines, L2 is a laser marking machine specialized for jewelry. It is convenient and perfect not only for jewelry factories and workshops, but also for jewelry shops.
Optimized for jewelry
- Black marking / White marking / Deep marking
- Easy switching between pendant ↔ ring marking modes with the Push-Pull connector

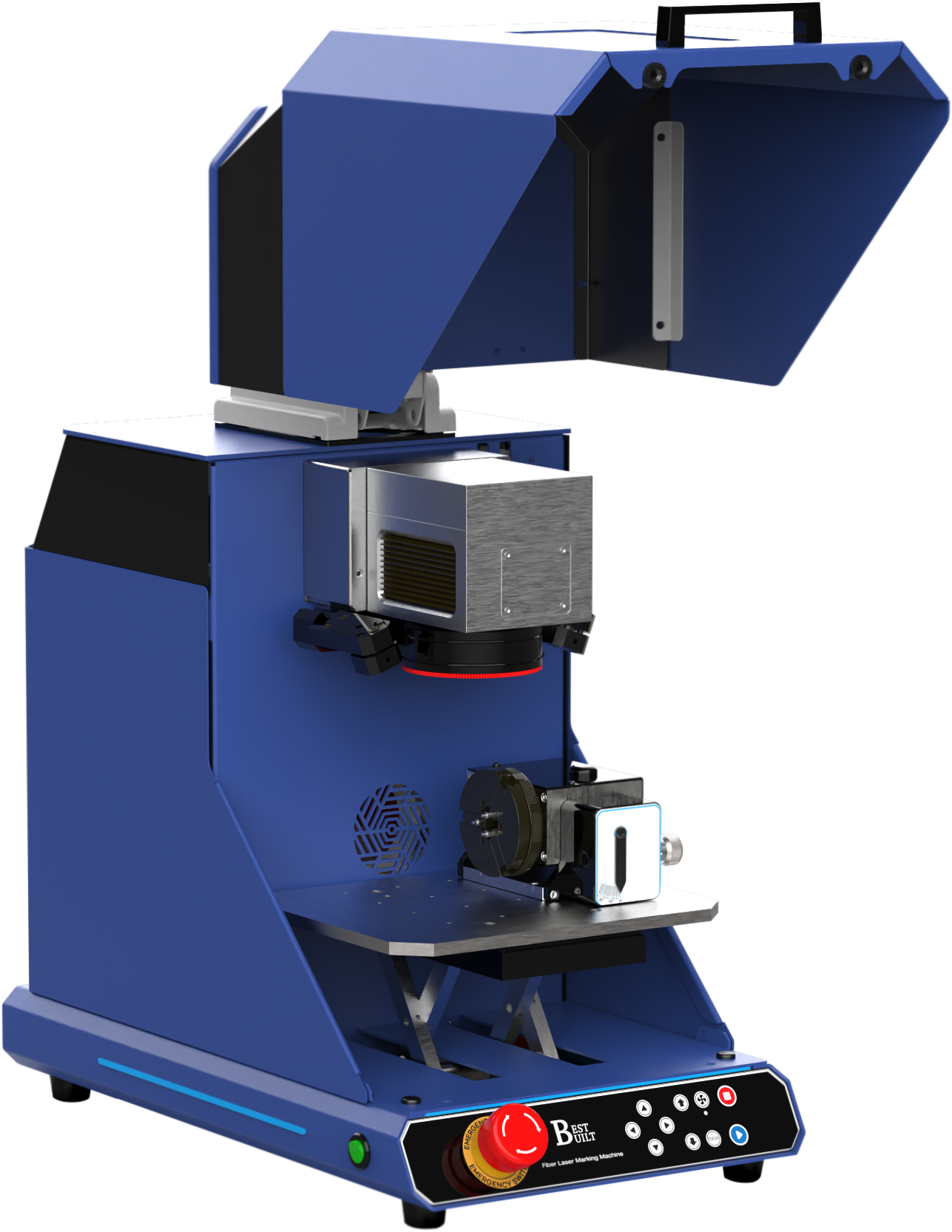

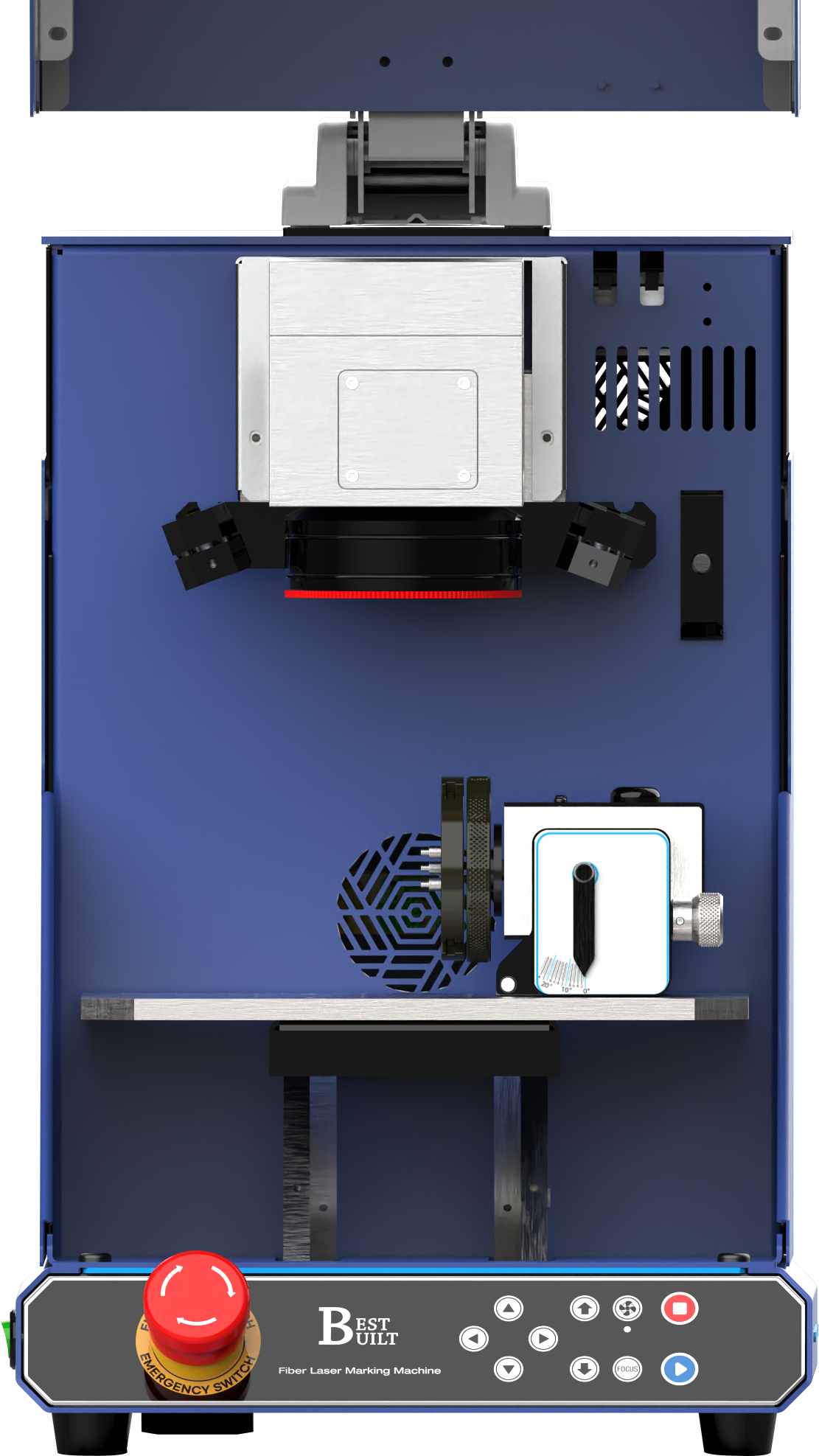

Left and right sliding rotary structure for easy marking of a ring’s inner and outer surfaces - Ergonomically designed angle adjustment knob for convenient marking of a ring’s inner and outer surfaces
- Various clamps are provided for easy marking of jewelry products with complex shapes
- L2 is a laser marking machine specialized for jewelry, and it can conveniently and quickly perform marking work that is more delicate and complex, and support a variety of shapes.
- Easy rotary clamp connection with Push-Pull connector
- Built-in automatic function for control of plate height

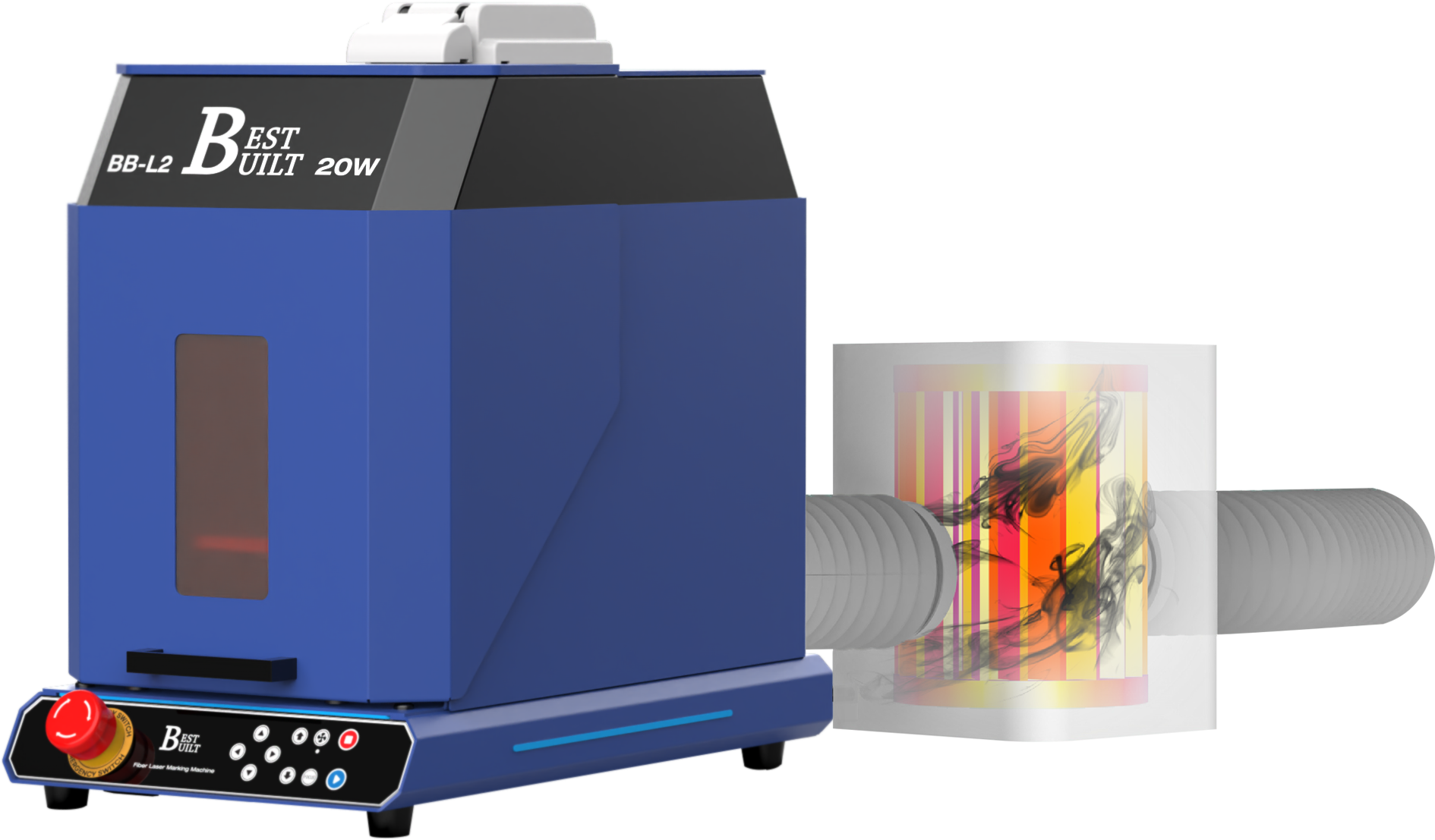

- Built-in ON/OFF function for the automatic dust collector
- Built-in LED indicator for quick and easy check of device status
- Built-in Soft-Hinge to operate the safety door smoothly with little force
- Offers large open space and sufficient operating space through the upward-opening safety door
WARNING:
California's Proposition 65
Customer Reviews
No reviews yet Write a review
Product Specs: |
|
| Model | BB-L2 |
| Class | Class 1 Laser Product |
| Focus Laser Class | Class 2 Laser Product, <1mW |
| Dimension | 304mm(W) x 500mm(H) x 554mm(D) (12" x 20" x 22") |
| Marking Area | 85mm x 85mm (3.3" x 3.3") |
| Max Material Height | 62mm (2.4") |
| Max Z Stroke | 62mm (2.4") |
| Safety Door Open Height | 751mm (29.6"/From base plate) |
| Max Material Weight | 4kg (9lbs) |
| Weight | 36kg (79lbs) |
| Power | 100V~240V, 50Hz/60Hz |
| Power Consumption | 290W |
| Cooling | Air Cooling |
| Temperature | 0~40° |
| Humidity | 10~85% |
Laser Specs: |
|
| Laser Source Type | Ytterbium Doped Fiber Laser |
| Average Output Power | 20W |
| M² | <1.5 |
| Maximum Pulse Energy | 0.8mJ |
| Pulse Repetition Rate Range | 25~600KHz |
| Pulse Width | 200ns |
| Speed Range | 4000mm/s |
| Wave Length | 1064nm |
| Output Beam Diameter | 7.0±0.5mm |
| Out power Tuning Range | 0~100% |
| Cooling Method | Air-cooled |
| Polarization | Random |
| Anti-Reflection Protection | Yes |
| Built-in Guide Laser | Yes |
| Class (Main Source) | Class 4 Laser Product |
| Class (Guide Laser) | Class 2 Laser Product, <1mW |
