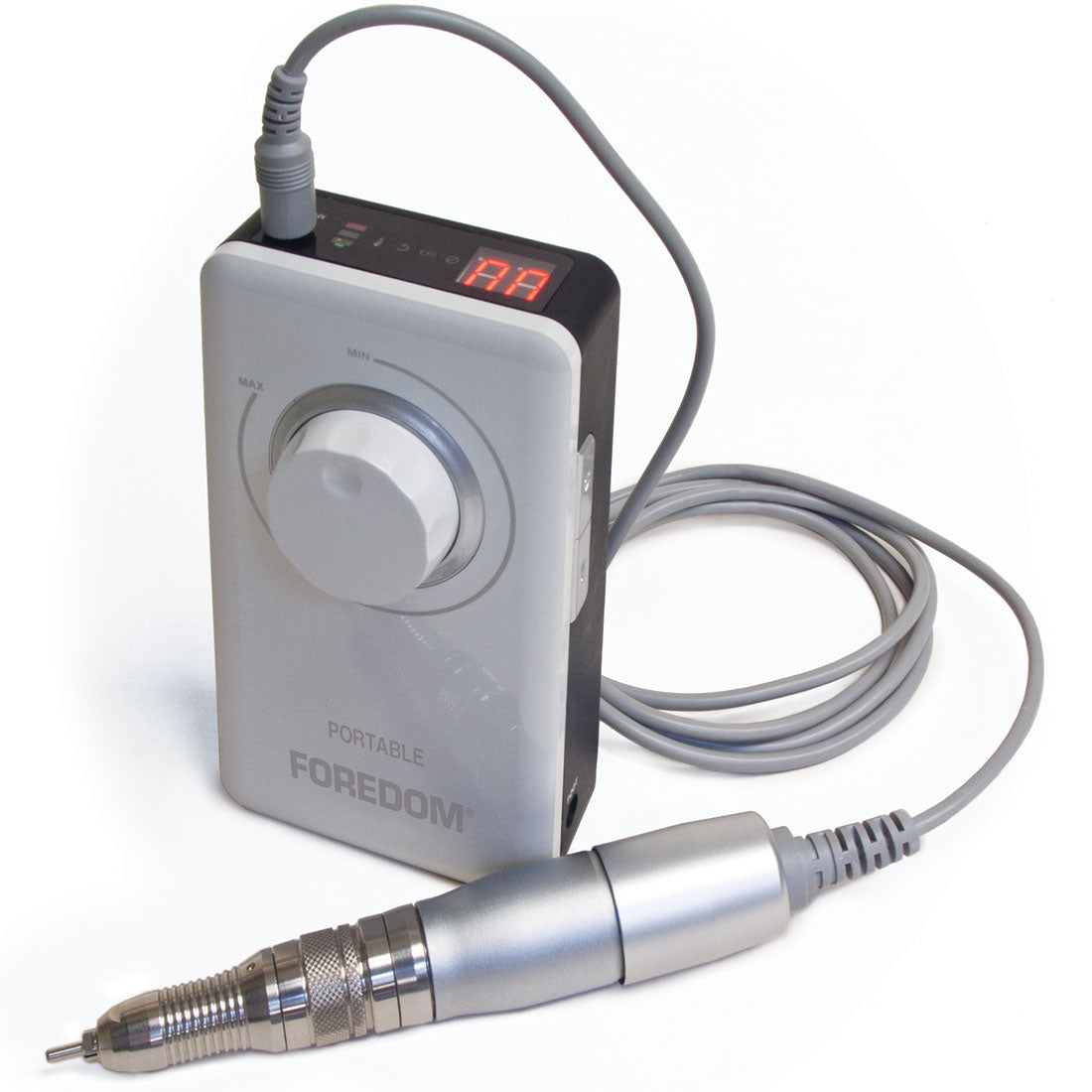

Foredom K.1030 Portable Brush Type Rotary Micromotor Kit

Key Features:

• New micromotor with pocket/pouch-size control unit has built-in lithium-ion rechargeable battery for the ultimate in portability. The control unit features a digital RPM display at the top that makes it easy to monitor speed as you work. The dial on the front adjusts speed from 0 – 30,000 RPM.
• Run time is approximately 5 hours, depending on how long the micromotor is in continuous use when in battery mode, or plug it in for day-long use. Battery charge time is 3 hours.
• Perfect for users who work at multiple stations, or for signing/personalizing work pieces at craft and outdoor fairs when no power is available.
• The handpiece (motor) is small and lightweight yet has plenty of power for fine detailing, polishing and even grinding on metal, wood, glass and many other materials. Its fan cooled, brush type continuous duty motor runs cool and vibrationfree. It has permanently lubricated, shielded ball bearings that require no additional lubrication.
• The handpiece has a twist release rotary type collet for easy changes of 3/32″ or 1/8″ shank burs, depending on collet installed.
• Comes with spare Motor Brushes HP8-163 and Collet Changing Wrenches HP4-993. Collets can be installed and changed. Consider Collet Adapters, that step down collet sizes without having to switch out a collet, for handpieces with 1/8″ collets.
• K.1030 Kits Carry a Two Year Limited Warranty

View Instructional Manual Below

FOREDOM's NEW battery operated kit offers the ultimate in portability without sacrificing power. You have the freedom of truly cordless operation although you can plug it into an outlet for day-long use. Perfect if your work involves moving from station to station, or for use at craft and outdoor fairs when no power is available.

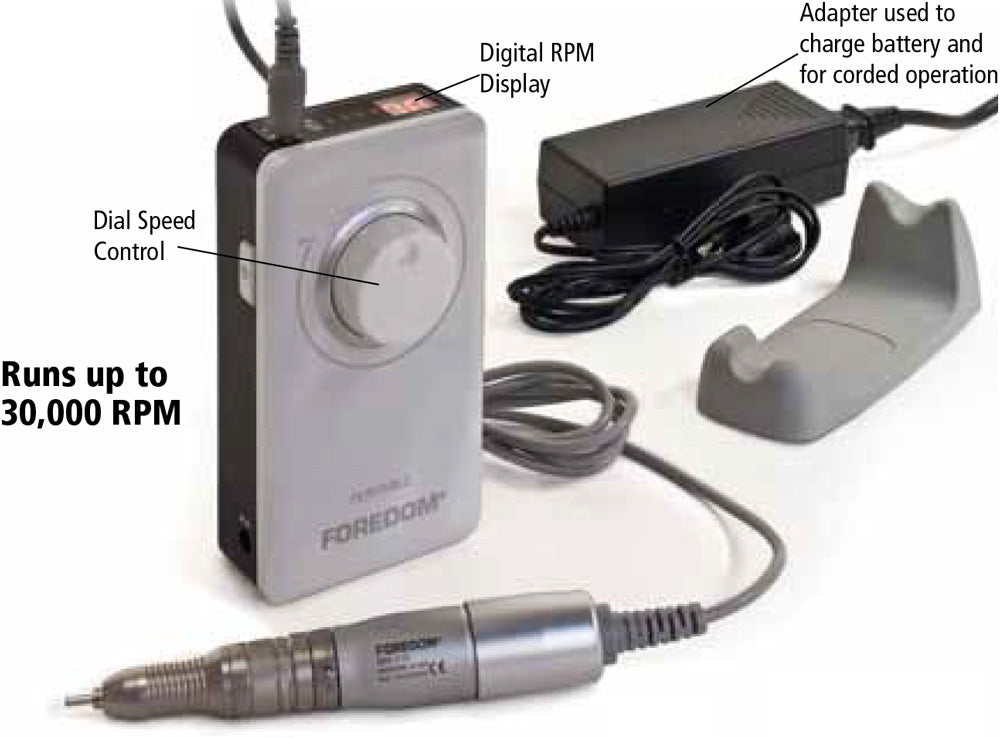

Control Unit with Built-in Rechargeable Battery

Front: Speed Control Dial

Top: Handpiece Connector Port 2-Digit RPM Display LED Indicator Lights: Optional On/Off Foot Switch in use, Rotational Direction, Battery
Charging, and Overload

Side On/Off Button

Panels: Adapter/Charger Connector Port Forward/Reverse Button Optional Foot Switch Connector Port On/Off Foot Switch (Optional) Button

Specifications: 2-3⁄4″ Wide, 1-1⁄4″ Deep, 5-1⁄4″ Tall, 9.77 oz. Output: DC 12V/1.2A

Handpiece– Motor

Specifications: 5″ Long, 1/2″ Diameter at grip, 7/8″ at motor, 6.46 oz/183g Cord Length: 59″

DC12V/1.2A, 4.11 in.- oz or 29mNm or 25W Max Torque or Watt Output

Rechargeable Lithium Ion Battery

Specifications: 14.8v – 1,800mAh Charging Time: 3 hours, Working Time: 5 hours

Charger/Adapter with cord set

Specifications: Input: 110-240 Volt, 50/60hz, Output: DC18V/1.8A
