Orion 150s Series Pulse Arc Micro TIG Welders

SKU: 69-594

Price:
Sale price$5,900.00
The Orion s Series boasts a power potential of up to 250 joules of pulse-arc weld energy. While powerful, the s Series is perfect for low power needs as well—yielding as little as 1 joule of energy. Even with such a large range in power, full control is maintained as the s Series is adjustable in 0.2 joule increments. Whether an application requires high power welding needs or intricate, precise welds around precious components, the Orion s Series offers a versatile, compact, and affordable welding system in an easy-to-use package.
Powerful but precise mid-range system
11 pre-programmed metal settings and 50 customizable save settings
8" LCD touch screen
Description
REVIEWS
SPECIFICATION
USER DOCUMENT
VIDEO

The Precision Micro-Welder Technology You Need!

The Orion 150s is the ideal welding tool for any micro-welding application. The s Series welders can be seen in laboratories, universities and research & development institutions around the globe.

How Does it Work?

Electrical Energy – Plasma Discharge

Micro TIG/Pulse Arc welding uses electrical energy to create a plasma discharge. The high-temperature plasma, in turn, melts metal in a small spot. This process takes place in milliseconds. The process is clean and very controllable – perfect for intricate and minute welding applications on precious and non-precious metals!. Filler metal can also be added to build up joints and create strong and reliable weld “beads”, or weld seams.

Two in One Combo

The Orion is a Micro TIG (also known as Pulse-arc) welder and a capacitive discharge resistance welder in one. This combination of abilities allows for infinite creative possibilities. In its "Arc Mode" (micro TIG/pulse-arc welding), the can be used to perform permanent welds, add metal, and do a variety of other amazing and time-saving applications. In its "Tack Mode" (capacitive discharge resistance welding), the can be used to temporarily position parts before welding or soldering.

The Basic Principle of the Orion Welding System is very simple.

1.) Attach The Grounding Clip

2.) Use the Specialized Microscope that is focused on the Welding Electrode Tip.

3.) Simply Touch the workpiece to the electrode and a weld is triggered.

4.) A Perfect Weld Every Time!

WARNING:
California's Proposition 65

Customer Reviews

No reviews yet Write a review

Manufacturer / Model No.:
Orion / 150s2 / User Manual
Welder Type
Capacitive Resistance / Pulse Arc
Output:
1 - 150 watts per second; adjustable in 0.2 W/s increments.
Speed:
One (1) weld/s & five (5) welds/s
Weld Spot Diameter:
0.5 - 3.5 mm
Dimensions / Weight:
12” x 6” x 10” (30.5 x 15.2 x 25.4 cm) / 20 LB
Stereo Microscope Magnification:
5X
Display
8" touch screen LCD

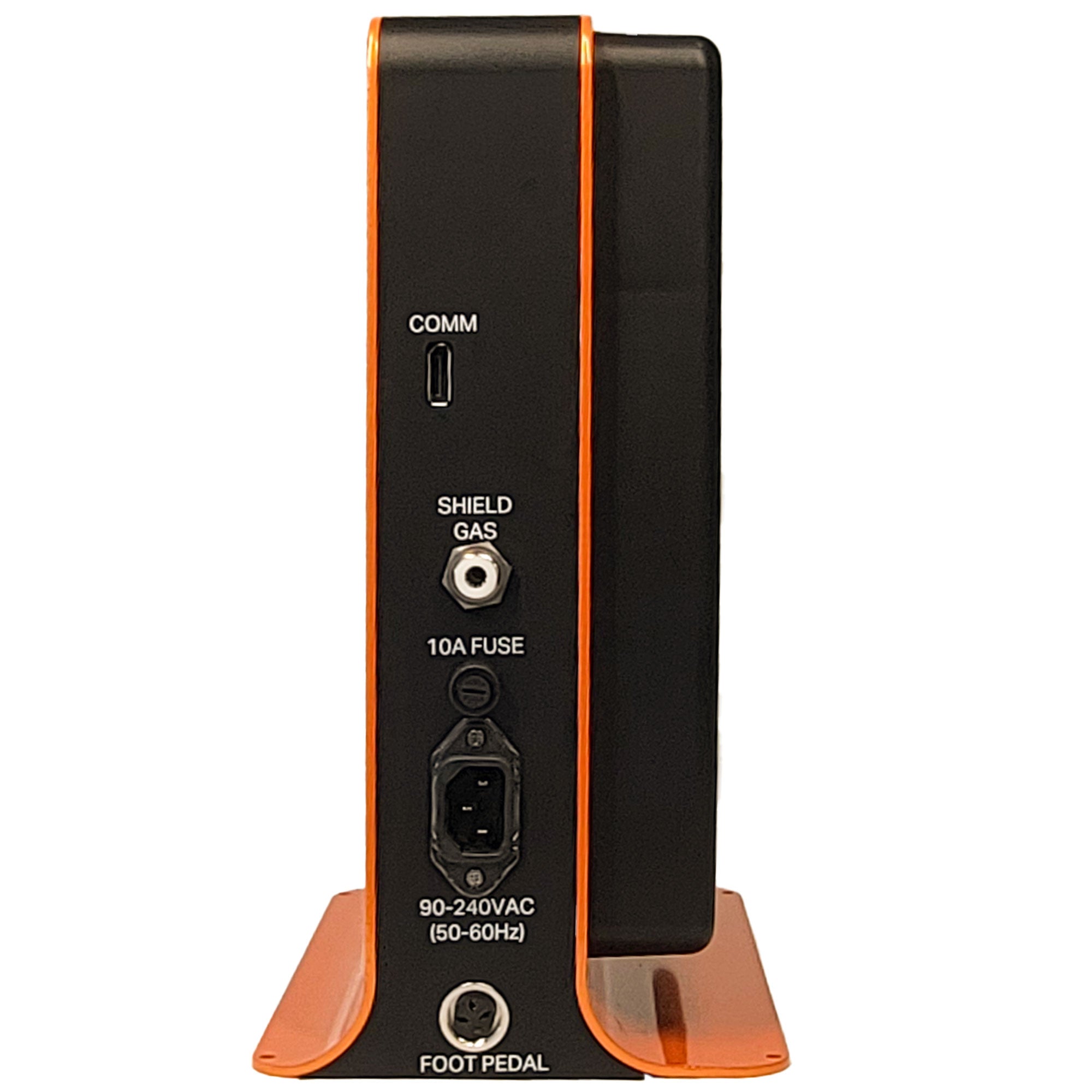

Power Supply:
100-240 V AC adapter included
