Lampert® PUK 5.1 Welding System W/SMG5.1 Microscope

SKU: 69-561

Price:
Sale price$6,450.00
Description
REVIEWS
SPECIFICATION
USER DOCUMENT
VIDEO
3-Year
Warranty

The newest and most powerful TIG impulse welder from the experts at LAMPERT is so useful that you'll wonder how you ever got by without it: Use it for spot welds between 0.3 and 3.0 millimeters on material even thinner than 0.2 millimeters, or for welding deep crevices and other hard-to-reach areas. Tack welding mode eliminates the need for wiring before beginning a welding project. Repair, fill pores, or create structures from precious metals, alloys, and non-ferrous metal wire and sheet elements.

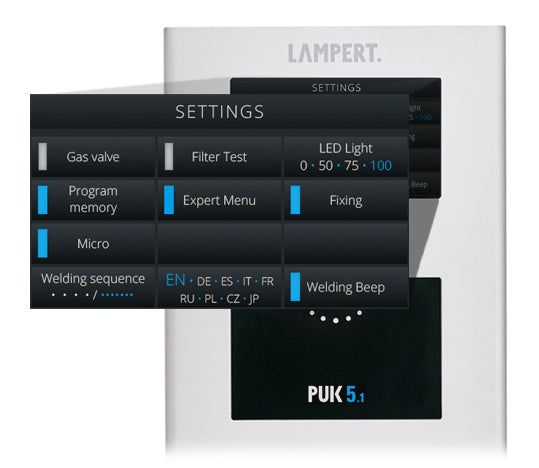

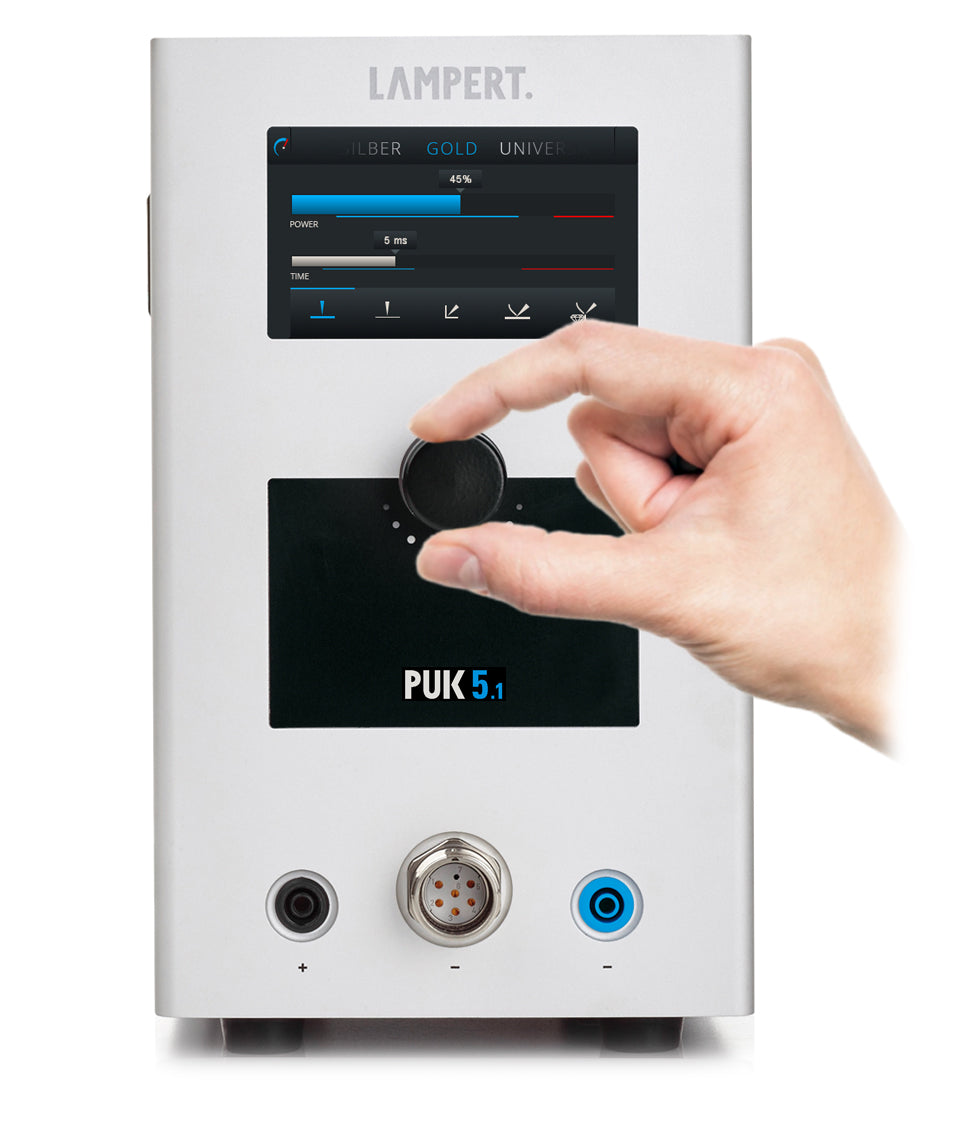

Thanks to its intuitive controls, the PUK 5.1 can be operated blindly while working on a piece. Intelligent pre-settings simplify the setup process: Simply select your metal group and weld situation on the PUK 5.1's LED touch screen, and begin welding. Settings can be fine-tuned with one hand via the rotary controller and foot pedal, so that you don't need to look away while in the middle of a weld.

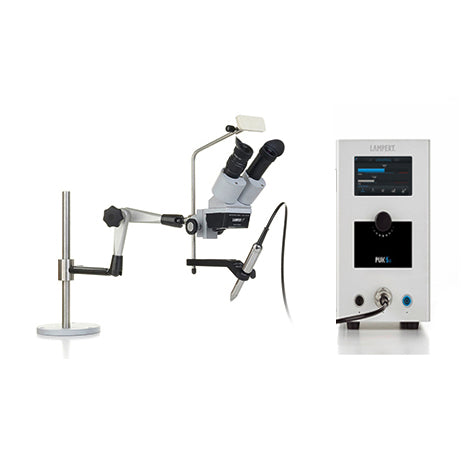

NEW: Pre-selection of two different welding cycles ◆ Smoothing function further improves the flow properties of certain metals ◆ Passive cooling system and completely closed housing prevent damage from accumulated dust ◆ Free programming software pre-loaded on controller ◆ USB connectivity ◆ Premium welding microscope with DIN CERTCO-approved automatic eye-protection filter and integrated LED illumination for four adjustable levels of brightness.

Also included with your purchase are LAMPERT's 0.5 mm, 0.6 mm, and 0.8 mm pre-sharpened electrodes; high-sensitivity LAMPERT Flowmeter argon regulator for superbly accurate readings and better welds; and handpiece with holder, diamond grinding wheel, 0.8 mm collet, contact clamp, cleaning pen, T-connector, and three meter gas hose.

All components are made with German quality that you can feel and are protected by LAMPERT's three-year manufacturer's warranty.

WARNING:
California's Proposition 65

Customer Reviews

No reviews yet Write a review

(WIG) min./max.9 - 400 A
Pulse duration (WIG)0.5 - 34 ms
Current (tack welding80 - 700 A
Pulse (tack welding)0.2 - 3 ms
Welding speedup to 2 Hz
Metal programs10
Magnification10 x
Field of view dia20 mm
Working distance145 mm
Range550 mm
LightingLED 3 W / 800 mA
Power during welding7 W
Shipping Weight30 lbs
