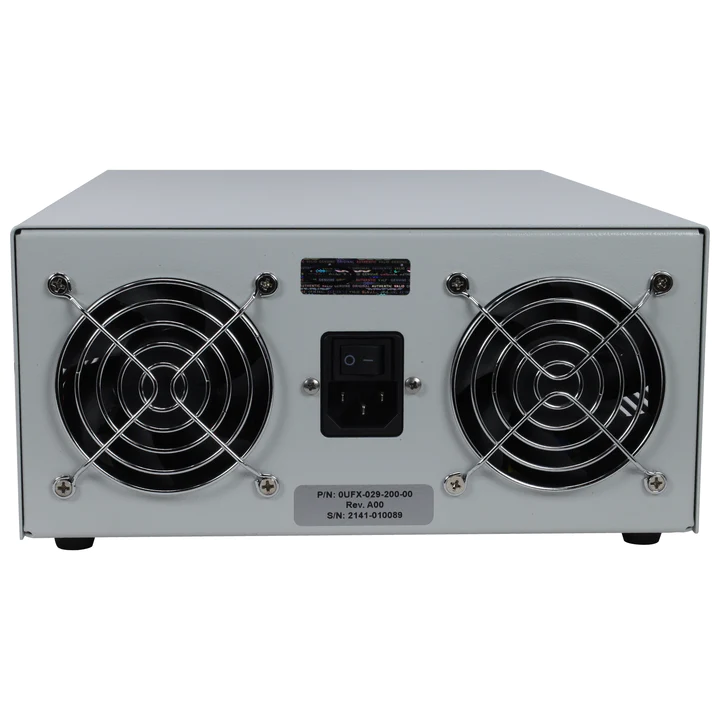

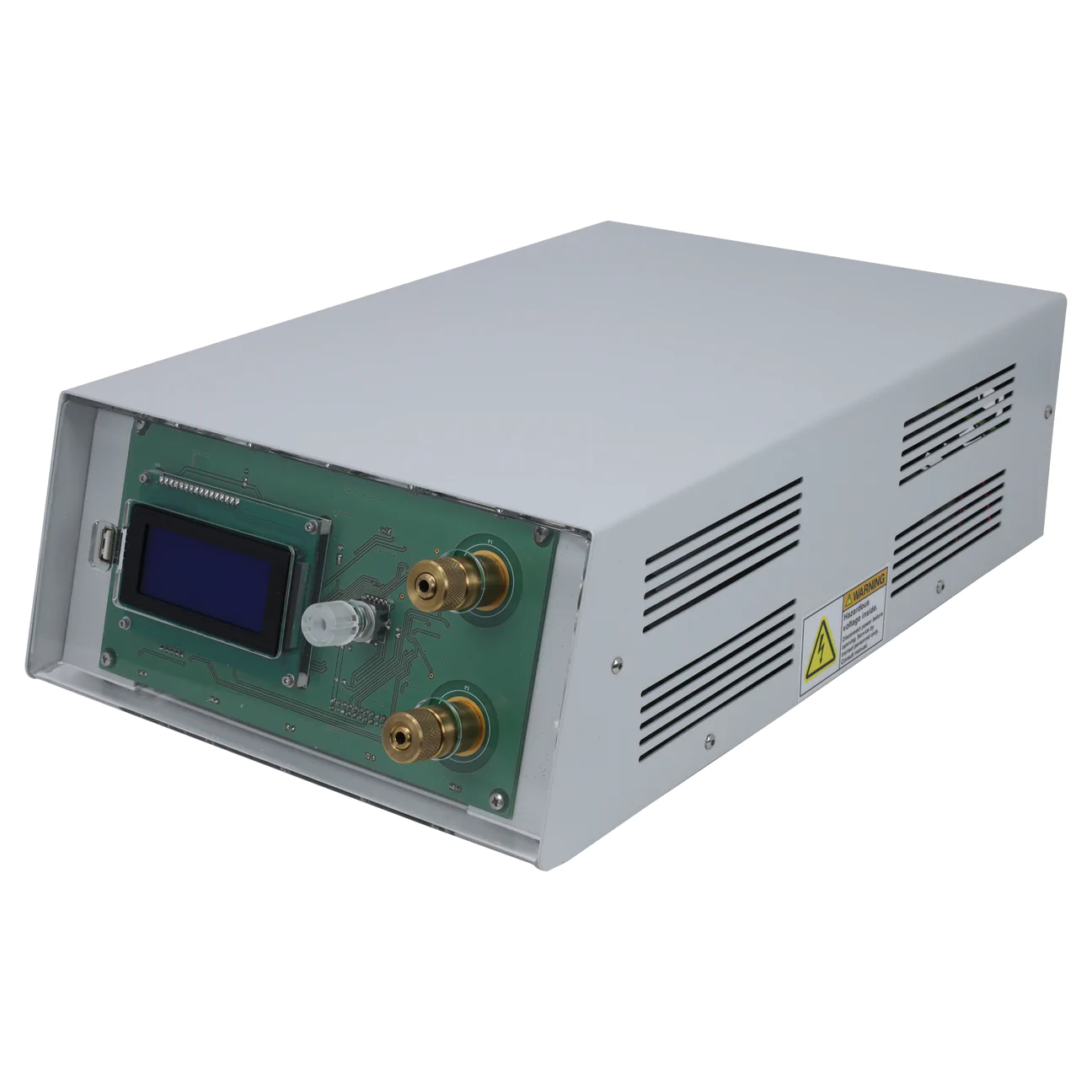

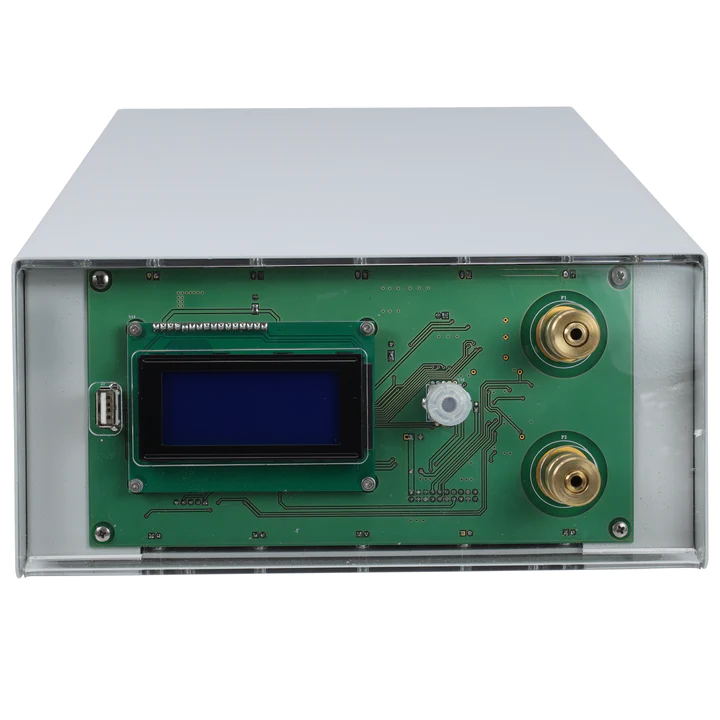

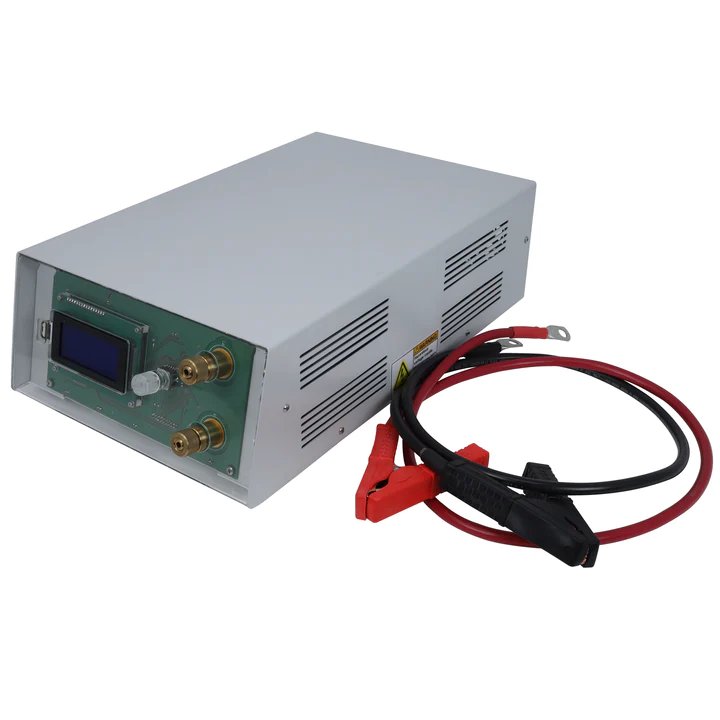

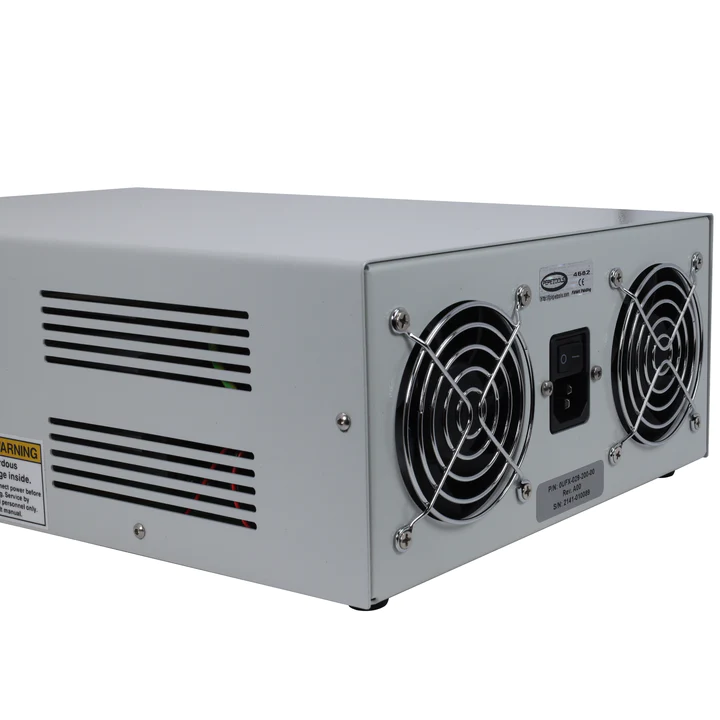

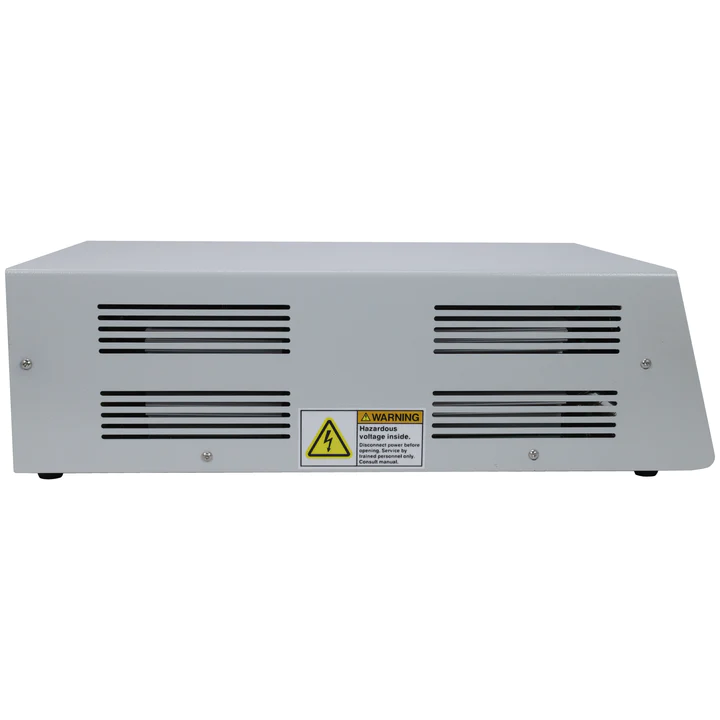

About Digital Precision Plating Rectifier - 80amp
A technological breakthrough for precision plating in industrial shops, the Pepetools Digital Precision Plating Rectifier is capable of producing up to 80amps at 18v. Features include;
- Stepped plating, time programs anywhere from 1 second to 10 hours. Combine up to 5 programmed power outputs for precision finishing of tough to plate materials
- Integrated amp hour counter
- Auto short protection
- One button reverse polarity
- Dual voltage, auto switching (110/220v)
- Each program can store parameters such as;
- Plating Time
- Reverse Polarity Time
- Current Voltage
- Current Amperage
- Start Delay
- Temperature protection (auto shutoff)
- Current protection
- CE Certified
Dimensions
- 400mm long
- 135mm tall
- 250mm wide
- 6kg net weight
Includes
- Digital Rectifier
- Power Cord
- Instruction Manual
- Heavy Duty Alligator Leads
Technical features expanded;
- Efficiency - >=88%
- Output Voltage Accuracy <=0.2%
- Output Voltgage Adjustmet Resolution (step) - 10mV
- Output Voltage Ripple and Noise - <=1%
- Load Current Adjustment - 0.35 - 80A
- Load Current Accuracy <=1%
- Load Current Adjustment Resolution - 10mA
- Load Current and Ripple <=1%
- Maximum Program Time - 9hrs 59m
- Adjustment Precision - 1 second
- Positive/Negative Pulse Duration - 0.1 - 90min
