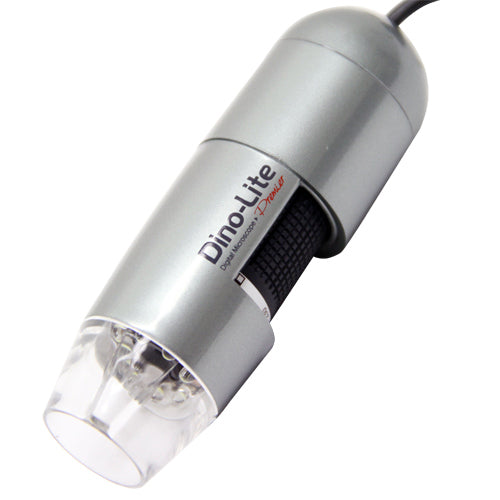

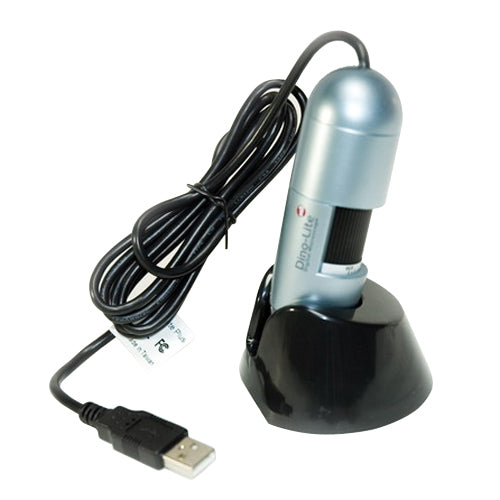

Dino-Lite AM3013T 0.3MP Digital Microscope
Dino-Lite AM3013T 0.3MP Digital Microscope
Dino-Lite AM3013T 0.3MP Digital Microscope
Roll over image to zoom in Click on image to zoom
Dino-Lite AM3013T 0.3MP Digital MicroscopeDino-Lite AM3013T 0.3MP Digital MicroscopeDino-Lite AM3013T 0.3MP Digital Microscope

Dino-Lite AM3013T 0.3MP Digital Microscope

SKU: 54-125
Price:
$289.00
Description
REVIEWS
SPECIFICATION
USER DOCUMENT
VIDEO
The Dino-Lite AM3013T Premier digital handheld microscope with measurement and MicroTouch has natural color technology providing colors true to their original appearance. The difference between the AM3013 and the AM3013T is the MicroTouch trigger which is a sensor that provides convenient snapshot ability without disturbing the image by moving a physical button. This model comes with measurement and calibration feature only available for professional models. It also has enhanced low light capabilities where you can see objects clearly when there is minimal light available. The AM3013T has a refresh rate up to 30fps at 640×480 resolutions and can magnify objects up to 230x depending on working distance

Compatibility
Operating System

Windows XP, Windows Vista, Windows 7, Windows 8, Mac OS 10.5 (Leopard), Mac OS 10.6 (Snow Leop), Mac OS 10.7 (Lion), Mac OS 10.8 (Mtn Lion)
Included Software DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Connection Type
USB 2.0
Image Save Formats (Windows) BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Video Save Formats (Windows) WMV, FLV, SWF
Image Save Formats (Mac Os) PEG, PNG
Video Save Formats (Mac Os) MOV
Imaging Standards DirectShow, UVC


Information
Package Includes Microscope, Carry Pouch, Cradle Stand, Software CD
Warranty Period 2 Years
Manufactured In Taiwan
Service & Support U.S. (www.dinolite.us) English & Spanish
Regulatory Approval CE, FCC, ROHS


Lighting
LEDs 8
LED Type White
Built-in Diffuser No
Polarization No
Strobe Light No
Optics
Magnification Range 10x-50x, 230x
Working Distance Standard
Lens Type Glass




Sensor
Sensor Size 1/4"
Sensor Type CMOS
Resolution 640 x 480 pixels
Megapixels 0.3 MP
Frame Rate (max) 30 FPS
Dimensions
Dimensions 10.5cm (L) x 3.2cm (D)
Weight 105g
Cable Length 182cm




Body
Magnification Lock No
Body Material ABS Plastic
Features
Measurement Yes
Microtouch Sensor Yes
WARNING:
California's Proposition 65

Customer Reviews

No reviews yet Write a review

Dimensions10.5cm (L) x 3.2cm (D)
