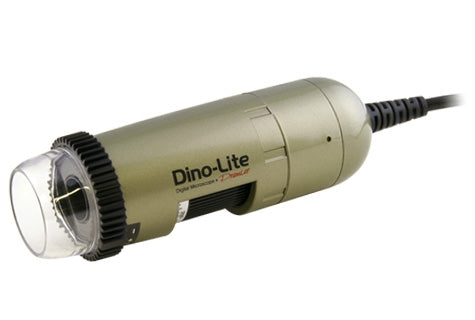

Dino-Lite AM4113ZT Digital Microscope w/ Polarizer

SKU: 54-110

Price:
Sale price$499.00
Description
REVIEWS
SPECIFICATION
USER DOCUMENT
VIDEO

Product Applications

The AM413ZT (polarized) model is designed to reduce the effects of glare and to help eliminate "hot spots" from highly reflective surfaces and providing uniform illumination to bring out more surface detail with minimal glare.

The key difference between the AM413ZT and the AM413ZTS is the shortened plastic nozzle on the AM413ZTS. The nozzle has been trimmed to allow contact-free examination of a subject at the highest magnification o r (90x-120x) magnification when you touch the object. AM413ZTS provides the greatest range of magnification when paired with an accessory stand like the MS34B, MS35B, or MS36B. The AM413ZT achieves the highest magnification in handheld use. This is beneficial when the user needs more portability, without requiring a stand.

The Dino-Lite Polarizing system can be switched on/off or can be adjusted to offer full or half polarization, providing the versatility required for use in the Dermatology - Skin or Scalp check, for diagnosis, cosmetic, follow up, hair loss treatment, etc. As well biomedical, printing/graphic arts, surface analysis and a variety of other fields.

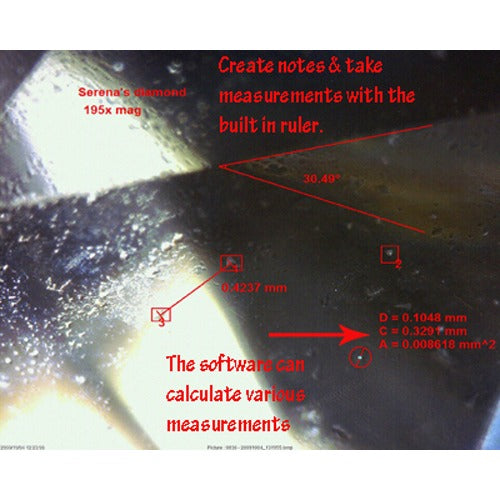

The 1.3 mega pixel resolution AM413ZT also comes with the calibrated measurement feature and all of the other standard features found in the Dino-Lite line of digital microscopes including the "DinoCapture" software which enables you to "capture" either a photograph, video or time-lapsed video with a simple click!

Features/Specifications

General Features:

  • Resolution: 1280x1024 pixels
  • Interface: USB 2.0
  • Magnification: 10~220X Variable magnification

Technical Specifications:

  • Resolution: 1280x1024 pixels
  • Interface: USB 2.0
  • Magnification: 10 ~220X Variable magnification
  • Sensor: Enhanced Color CMOS
  • Video frame Rate: up to 30 frame-per-second, 15fps at 1.3M
  • Illumination: built-in 8 white LEDÆs
  • L ED on/off controlled by software
  • Save File format: BMP, JPG, AVI
  • Compatible Windows XP, Vista, 7 and most MAC OS
  • Accurate measurement features (not available on AM411T)

Microscope Dimensions and Weight:

  • Body length: 4 inches / 10.2 cm
  • Body Diameter: 1.26 inches / 3.2cm max.
  • Cable length: 6 feet / 180 cm

  • Mechanical Layout:
  • Body with USB cable: 95g +/- 10g
  • Total package weight: 280g +/- 20g (not including manual)
  • Magnification: 10x~50x, 200x

Regulatory Approvals:

  • CE
  • FCC
  • ROHS

Options:

  • Table top stand MS35B, MS16C
  • Articulating desktop stand MS22B, MS52B, MS72B
  • USB 6 feet Extension cable

Additional Information:

  • The USB connection eliminates the need for interface cards or expensive software
  • The software for the collection and processing of photos is included
  • Software is easy and convenient to load and use
  • Automatic or manual color balance and control
  • Automatic or manual brightness control

Product Requirements:

  • Intel Pentium 4 1.5GHz processor or faster
  • Windows XP, Vista, 7
  • 512MB RAM
  • **CD-ROM drive
  • 16-bit color display monitor or higher
  • Luxurious storage bag
WARNING:
California's Proposition 65

Customer Reviews

No reviews yet Write a review

Country of OriginTaiwan
Data OutputUSB 2.0
Magnification10~220X Variable magnification
Pixels1.3M
Resolution1280x1024
SensorEnhanced Color CMOS
Unit Dimension4” (H) x 1.26” (D)
Unit Weight0.35 lb / 98 g
