Microscope USB Digital Camera (Microscope Digital Eyepiece)

SKU: 51-818

Price:
Sale price$329.00
Description
REVIEWS
SPECIFICATION
USER DOCUMENT
VIDEO

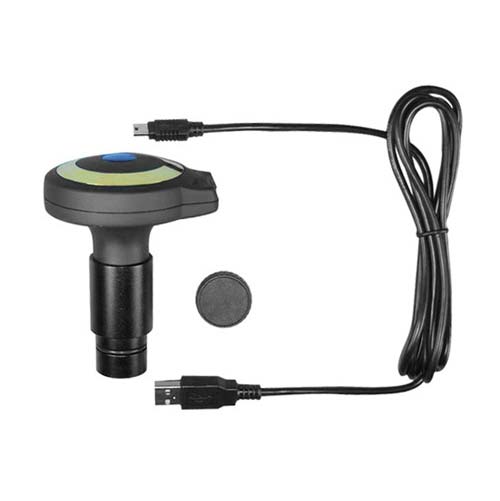

Microscope USB Digital Camera

This USB Eyepiece has 3.0M pixel sensor, and it is available for any standard biological microscope, stereo microscope or metallography microscope. It acts as a converter to update all kinds of your analog microscope into digital microscope, thus you can capture, analyze the digital images and share them with others. It makes your work easy, interesting, and effective.

The package  includes the

  • MVV3000 Digital Eyepiece
  • CD-ROM of software  Manual files
  • Adaptor ring
  • USB 2.0 Cable

Features

  • Digital imaging module: YUY2 and MJPG of image format 2048*1536 USB imaging module;
  • Imaging software: Future Win Joe microscopic imaging program;
  • Optical matching: Built-in relay lens and field lens;
  • Adapter barrel: 23.2mm and 30.0mm and 30.5mm;
  • Camera house: compact and light-weight round-shaped shell
logo
Application

To update any type of optics microscope into digital microscope and to Increase the value of your microscope by adding powerful digital capability. No squinting with one eye, just be enjoyable and to share with others. It’s an affordable imaging solution for microscopy in industry, education, medicine and science.
  • Capture images for living show, for shoot and for video recording;
  • To adjust the gain, resolution, WB, contras, exposure time, RGB color and Gamma setting;
  • To edit pictures and to manage files of pictures and movies.

Specifications:

Capture Mode

Picture and Video

Sensor Parameter

3.0MP

Max. Resolution

2048*1536

Responsivity

1.4V/lux-sec

Dynamic Range

70.1dB

S/N Ratio

38.1dB

Spectral Range

400-650nm(with IR-filter)

Frame Rate

15fps @ 2048*1536

Preview Model

2048x1536,1600x1200,1280x1024,800x600,

640x480,352x288,320x240

Exposure

ERS or Manual

Power Consumption.

381mW

White Balance

Auto and manual

Eyepiece Adapter Size

23.2mm, 30.0mm

Power Supply

USB Powered

Device Weight

0.32kg

Device Size

97*Φ74

Cable length

1.5m

PC Requirements

CPU: Inter Core2, 2.8GHz or Higher; Memory: 2GB or More;

 USB Port:USB2.0 High-speed Port
