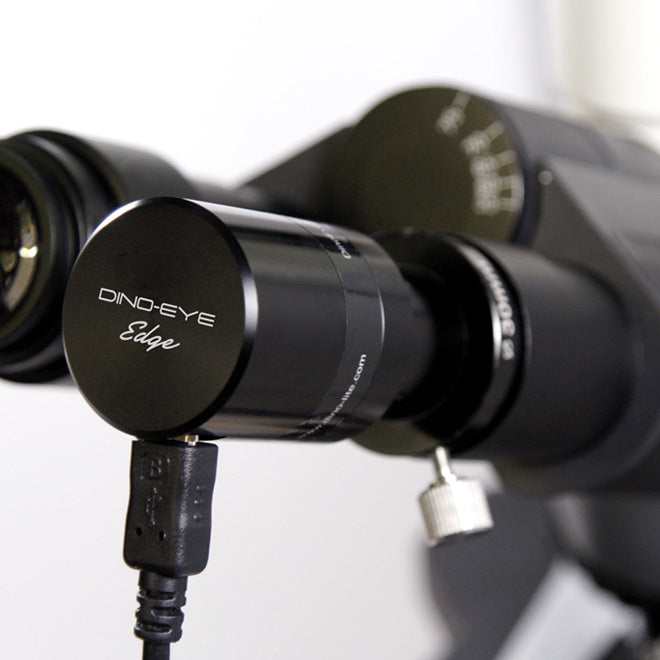

The high-quality Edge Series class optics and high-resolution sensor are now available as a 1.3MP version with the Dino-Eye Edge Series AM4025X. This eyepiece camera offers remarkable image performance while providing a relatively larger field of view than its predecessors.

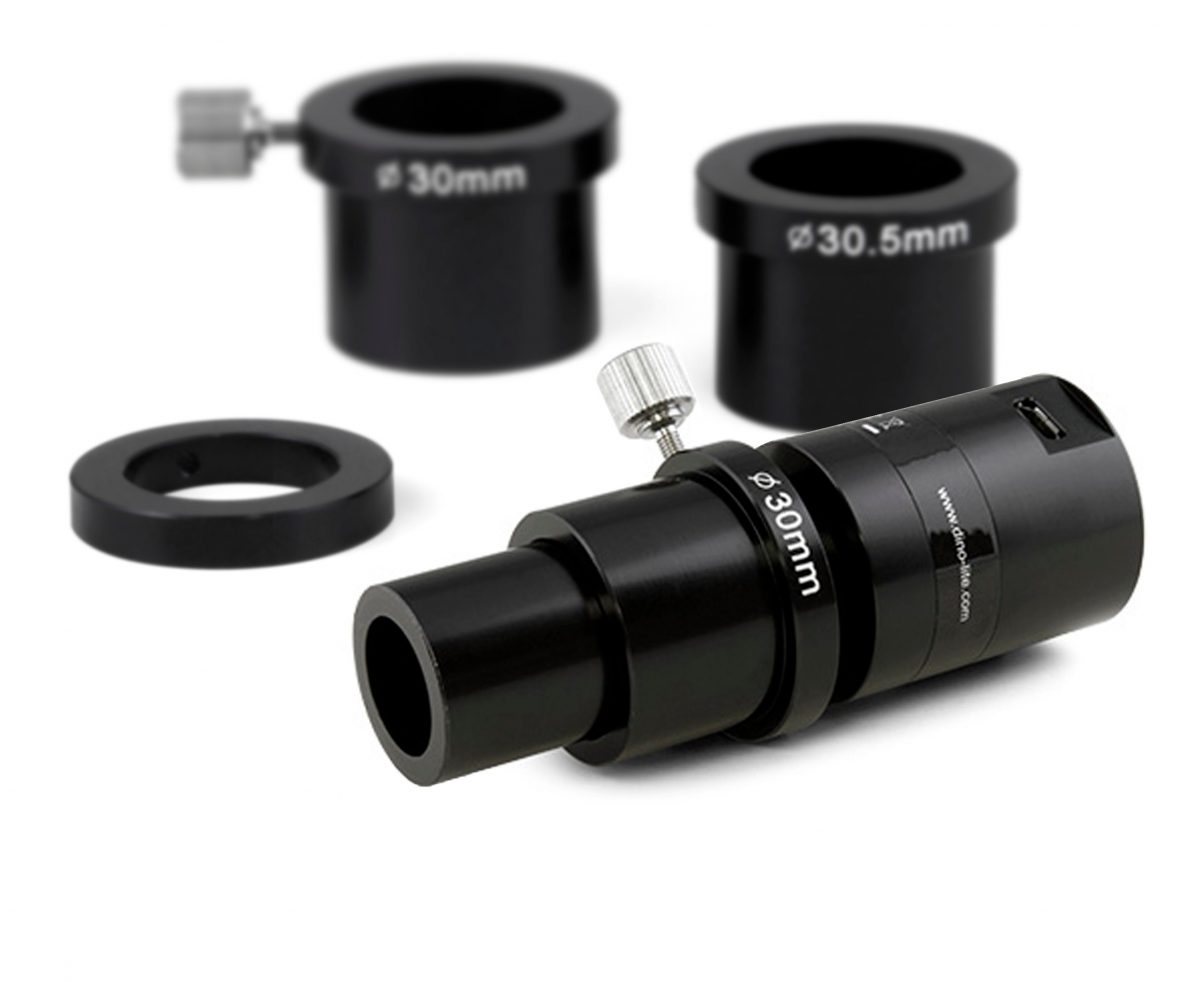

The AM4025X design and included adapters allows for fitment within 23mm, 30mm, 30.5mm or c-mount eyepiece slots which can be fixed into ideal focal positions. AM4025X delivers sharp images with authentic color while a large Field of View for revealing more details.
Includes both USB-A and USB-C cables.

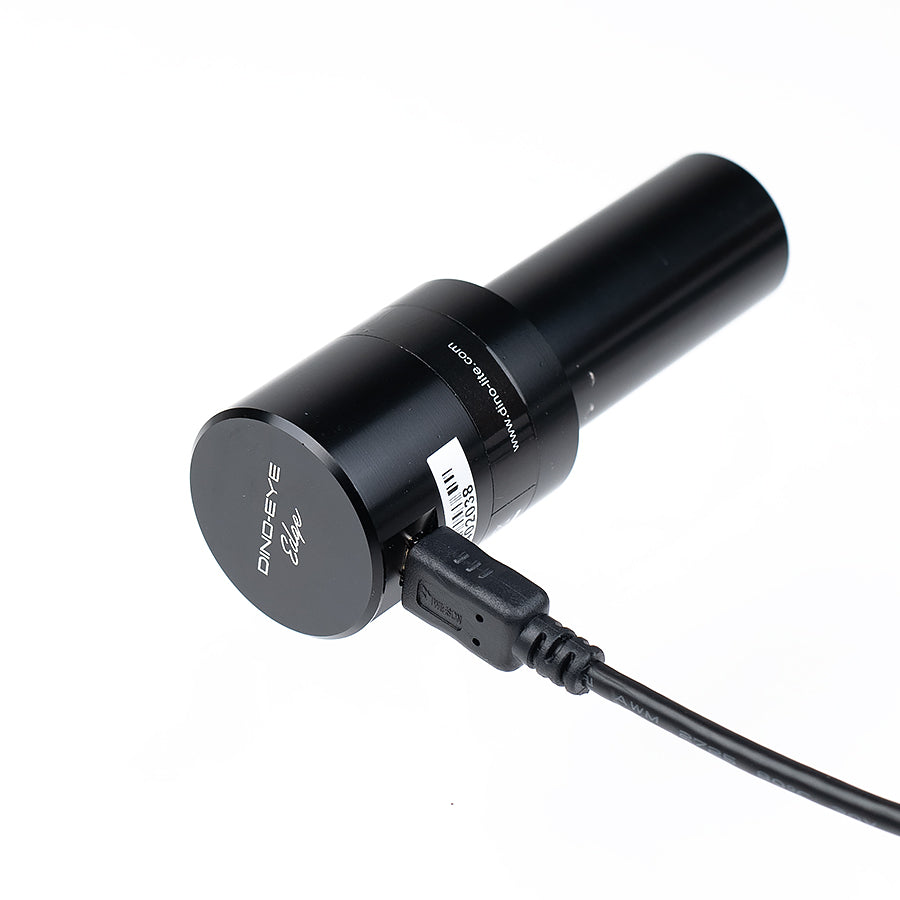

USB Digital Microscope Camera
A compact, high-resolution digital microscope camera designed for detailed inspection and accurate measurement. The durable metal body and USB connectivity make it compatible with both Mac and Windows systems, while the included adapters allow easy integration with a wide range of optical setups. Ideal for jewelers, gemologists, and precision inspection tasks.
Key Features
-
1.3 megapixel resolution for clear, detailed imaging
-
Up to 30 fps for smooth live viewing
-
Approx. 50× base magnification
-
Built-in measurement capability
-
Durable metal housing
-
USB 2.0 connection for plug-and-play use
-
Compatible with Mac OS and Windows
-
Includes adapters and calibration target
What’s Included
-
Digital microscope camera
-
Edge calibration target
-
30 mm adapter
-
30.5 mm adapter
-
USB-A cable
-
USB-C cable
Product Specifications
| Specification | Details |
|---|---|
| Resolution | 1280 × 1024 pixels |
| Megapixels | 1.3 MP |
| Frame Rate (max) | 30 fps |
| Base Magnification | ~50× |
| Base Diameter | 23 mm |
| Measurement Capability | Yes |
| Body Material | Metal |
| Connection Type | USB 2.0 |
| Operating System | Mac OS, Windows |
| Dimensions | 8.0 cm (H) × 3.2 cm (D) |
| Weight | 117 g |
| Warranty Period | 2 years |
| Manufactured In | Taiwan |
| Regulatory Approval | CE, FCC |
